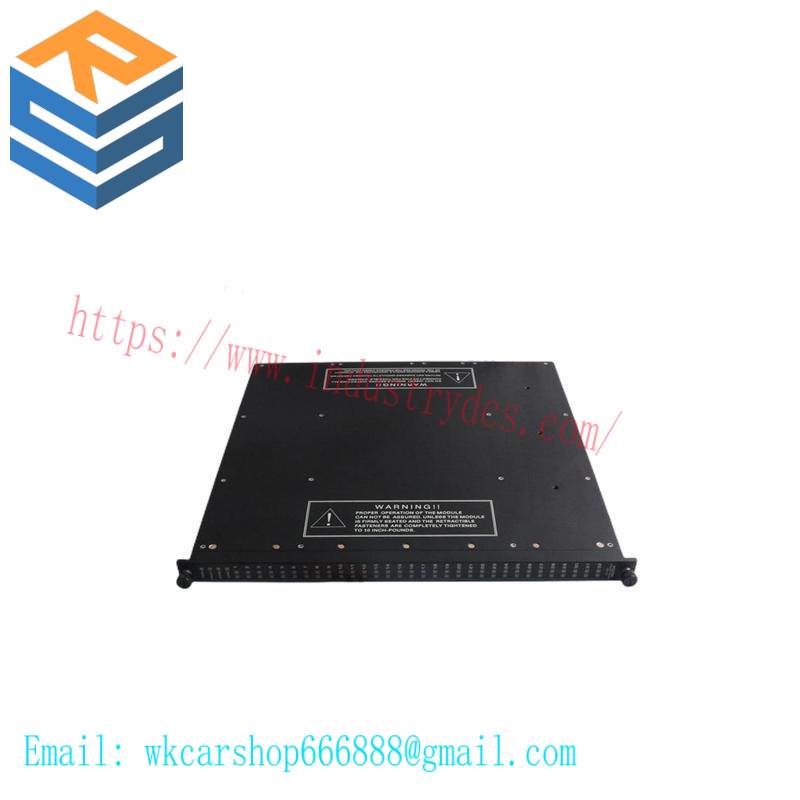

TRICONEX DO 3401 Output Module – High-Performance Digital Input for Industrial Automation

Model Type:Digital Output Module

Manufacturer:TRICONEX

Model Number:DO3401

Operating Voltage:24 VDC

Specified Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:- 0.6 VDC

Output Current:<4.8 A, self-limiting; 3.0 A, typical

Degraded Mode:> 0.7 A, self-limiting; 1.5 A, typical

Field Alarms:Loss of field power, output point shorted

On or Off Loop-back Thresholds:0–5 VDC = Off region; 6–14 VDC = transition region; 15–30 VDC = On region

Leakage to Load (Off):Measured leakage current

Points:16, commoned

    The TRICONEX DO 3401 Output Module is engineered for robust performance in a wide variety of industrial settings, ensuring dependable operation under harsh conditions.

    Featuring an advanced digital output design, this module supports a broad operational voltage range, allowing for flexibility in integration across different systems.

    With a maximum output voltage of 33 VDC and a reverse input voltage limit of -0.6 VDC, the module ensures safe and efficient power handling.

    The self-limiting current of up to 4.8 A and typical current of 3.0 A at the degraded mode provide a balance between power delivery and system safety.

    Equipped with comprehensive field alarms, the TRICONEX DO 3401 Output Module guarantees real-time monitoring and quick response to potential issues, enhancing overall system reliability.
