Product Type:Discrete Output Module
Module ID:140DDO35300
Modicon Type Designation:Quantum
Range of Product:Modicon Quantum Automation Platform
Component Type:Low Voltage DC
Discrete Output Number:32
Groups of Channels:4 groups of 8
Discrete Output Voltage:24 V DC
Power Dissipation:1.75 W + (0.4 V x total module load current)
Bus Current Requirement:330 mA
Product Weight:0.99 lb (US) / 0.45 kg
Voltage Limits:19.2…30 V
Input Impedance:2500 Ohm
Maximum Leakage Current:200 mA at Us = 5.5 V and Uin = 4 V
Absolute Maximum Input:30 V continuous / 56 V during 1.3 ms decaying pulse

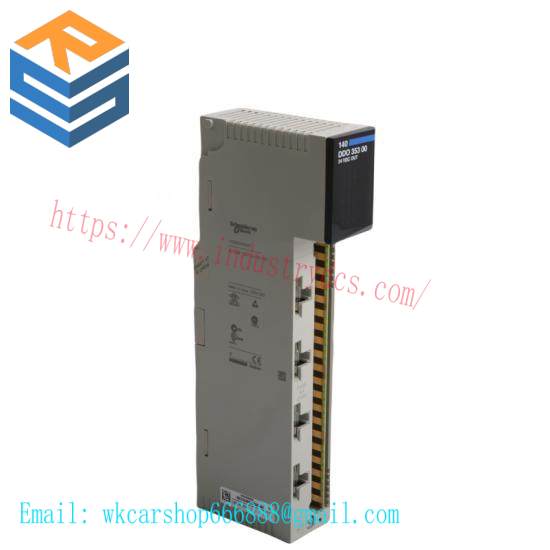

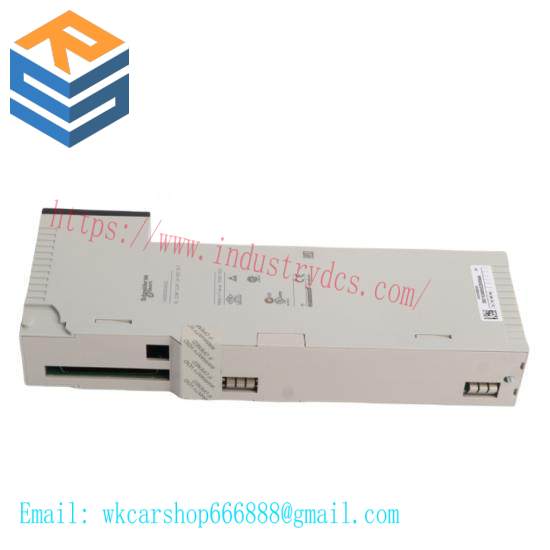

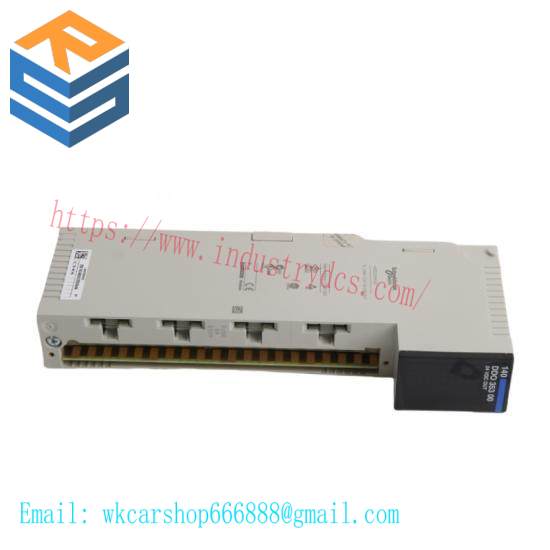

The Schneider Modicon Quantum 140DDO35300 Discrete Output Module is specifically engineered to enhance the performance of industrial control systems. Its compact design ensures seamless integration into existing setups, while its robust construction withstands the rigors of industrial environments.
Equipped with advanced features, this module offers precise control over up to 32 discrete outputs, making it ideal for applications requiring high-speed response times and accuracy. It supports 4 groups of 8 channels, allowing for flexible configuration to suit various control needs.
Featuring a 24V DC output voltage, the module is capable of driving a wide range of actuators and sensors efficiently. The power dissipation of 1.75W ensures reliable operation even under heavy load conditions, enhancing system reliability and efficiency.
With a product weight of just 0.99 lb (US), the Schneider Modicon Quantum 140DDO35300 Discrete Output Module is lightweight yet durable, offering ease of installation and maintenance without compromising on quality or performance.
Designed for compatibility with the Modicon Quantum automation platform, this module seamlessly integrates with other Schneider products, providing a cohesive and efficient solution for complex industrial control systems. It’s an excellent choice for optimizing production processes and improving overall operational effectiveness.
