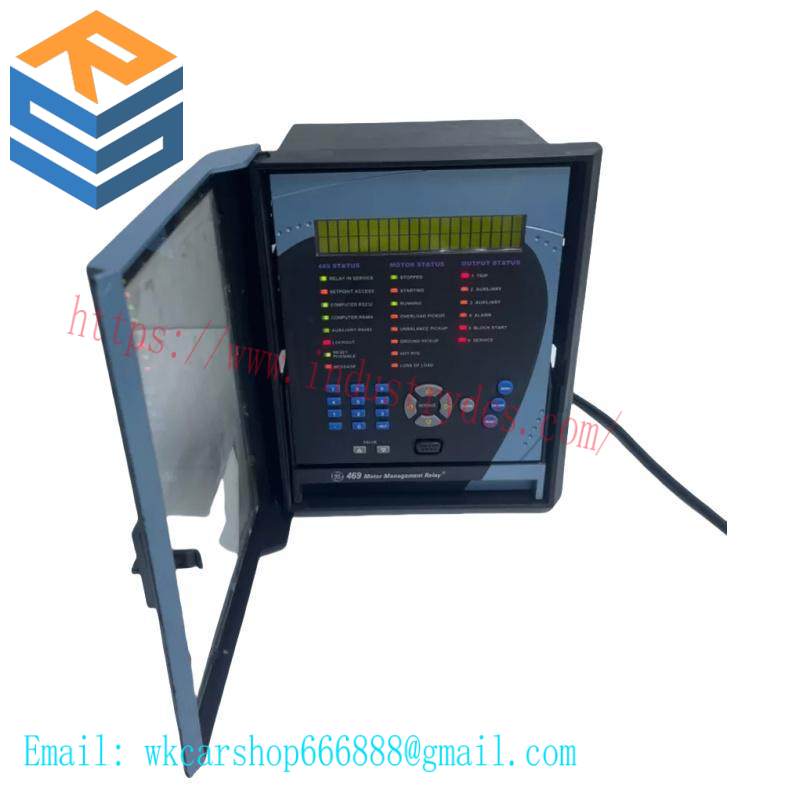

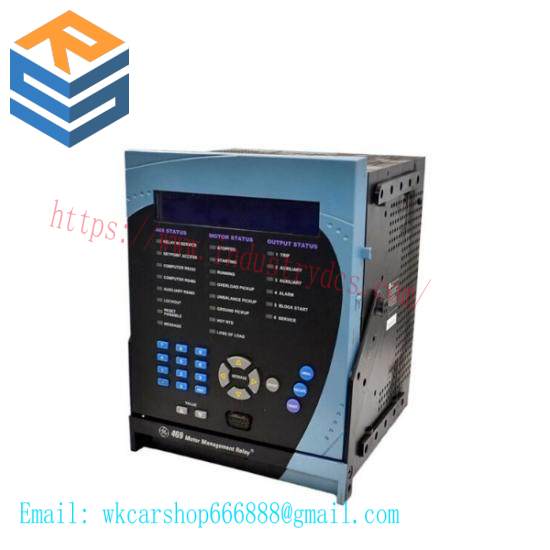

GE SR469-P5-HI-A20: Motor Management Relay

Brand:General Electric

Model:469-P5-HI-A20

Input Type:RTD, 5A phase CT secondaries

Input Resistance:100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, 100 ohm Platinum

Power Supply:90 – 300 Volt DC, 70 – 265 Volt AC

Analog Outputs:4 x 4 to 20 mA

Operating Frequency:48-62 Hz

Enclosure Rating:20-X

Pollution Degree:2

Insulation Voltage:300 V

Environmental Protection:Conformal Coating for harsh (chemical) environments

Ports:3 (Front RS232, Rear Com RS485 and Aux RS485)

Software:EnerVista 469 Setup

    The GE SR469-P5-HI-A20 is an advanced motor management relay designed specifically for industrial control applications. This relay is equipped with multiple RTD inputs that accurately monitor motor temperatures, ensuring optimal performance and safety. With its robust design and versatile features, it offers enhanced protection and management capabilities for motors of varying sizes.

    Key design highlights include the use of high-quality materials for reliable operation in harsh environments. The relay supports a wide voltage and frequency range, making it suitable for various industrial settings. Additionally, the four analog outputs allow for seamless integration with other control systems, providing real-time data for efficient management.

    The GE SR469-P5-HI-A20 is built with an IP65 rating when equipped with optional conformal coating, ensuring durability and longevity in challenging conditions. The front RS232, rear RS485, and auxiliary RS485 communication ports facilitate easy connectivity and data exchange.

    Designed for ease of use, the EnerVista 469 Setup software simplifies configuration and management tasks, reducing setup time and improving operational efficiency. Whether you’re managing small to large-scale motor systems, the GE SR469-P5-HI-A20 delivers exceptional performance and reliability.
