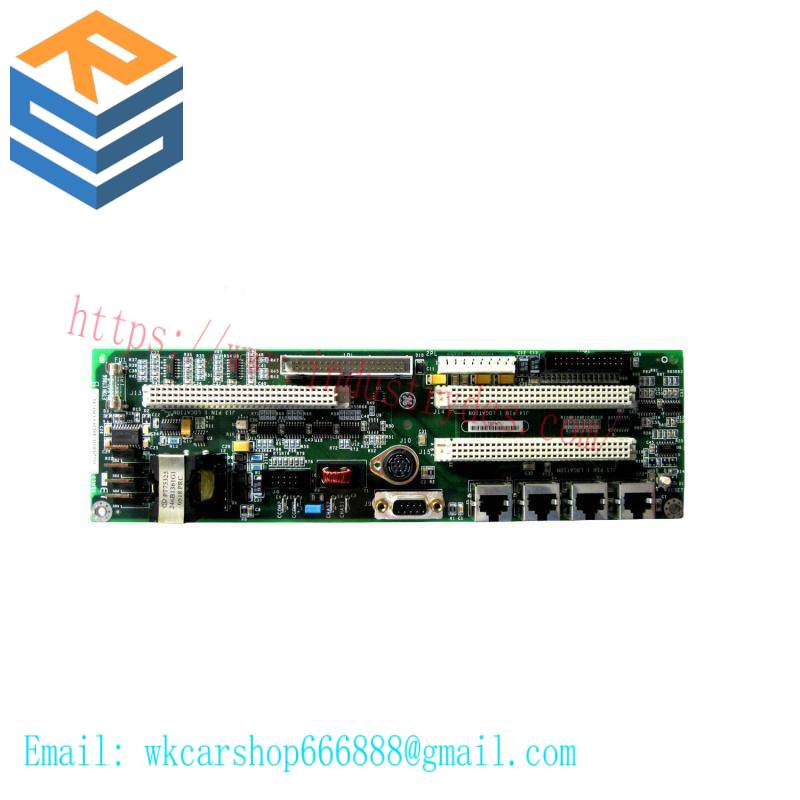

GE IS200ICBDH1ACB – Advanced Circuit Board for Industry Control

Series:Mark VI

Model Type:Printed Circuit Board

Board Compatibility:VME Rack

Connector Count:15

Diodes:10

Capacitors:61

Resistors:95

Transformers:3

Integrated Circuits:15

Inductor Coil:Yes

Fuse Presence:Yes

Ethernet Ports:[“J11A”,”J11B”,”J12A”,”J12B”]

RS-232 Port:9-pin

Dimensions:L11 x W6 x H6.7 cm

Weight:0.14 kg

Material:High-grade FR-4 epoxy resin

Certifications:[“UL”,”CE”,”ISO 9001″]

    Engineered with precision for optimal performance, the GE IS200ICBDH1ACB Printed Circuit Board is a crucial component in industrial control systems. Its robust design ensures compatibility with a wide range of automation equipment, enhancing system reliability and efficiency.

    Featuring an array of 15 connectors, this PCB supports versatile connection options, facilitating seamless integration with other electronic modules and devices. The inclusion of both RS-232 and Ethernet interfaces enables flexible communication, catering to diverse network requirements.

    Equipped with a reset switch, the board allows for easy troubleshooting and maintenance without the need for complex procedures. This feature significantly reduces downtime, optimizing operational continuity.

    Adapted to withstand challenging environmental conditions, the IS200ICBDH1ACB operates reliably across a broad temperature range (-40°C to +85°C). Its dustproof IP20 rating ensures protection against dust ingress, safeguarding internal components from contamination.

    Comprehensive compatibility with General Electric’s Mark VI IS200 series ensures seamless integration with existing systems. The board’s durable construction and efficient power supply capabilities make it an ideal choice for enhancing industrial automation projects.
