Control Power nominal:20 VA
Control Power maximum:65 VA
Control Power Input Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Dimensions:approx. 12 in H x 5 in W x 8 in L
Ground Current Input Frequency:20 to 100 Hz
Insulation Class:Class I
Phase Current Input Conversion:True RMS, 1.04 ms/sample
Weight:approx. 4.5 kg
Optional Metering Feature:Yes
RTD Inputs:12

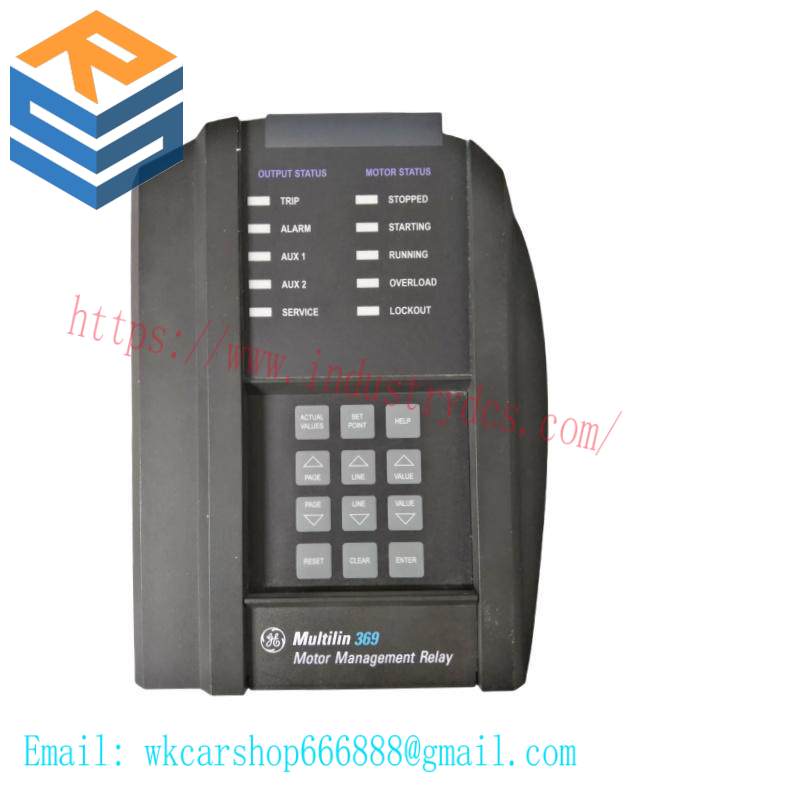

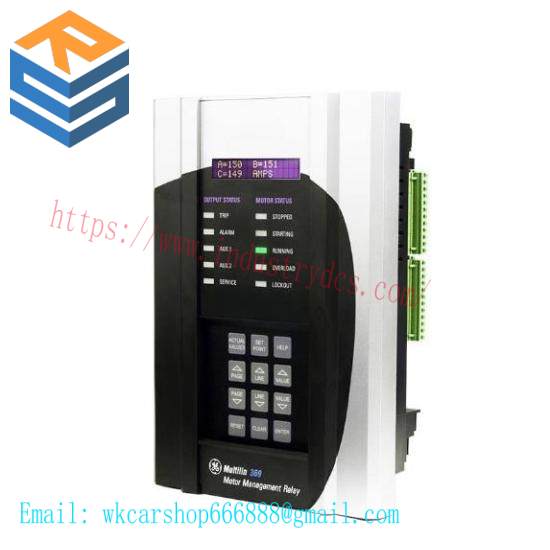

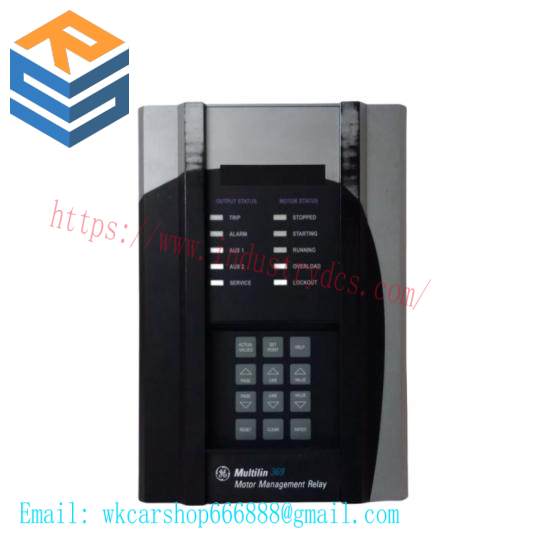

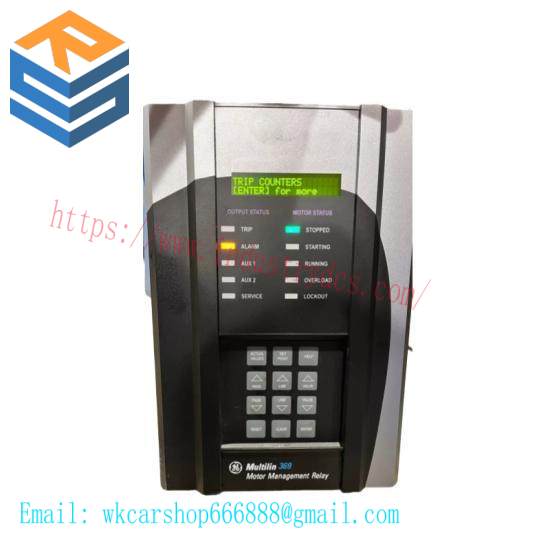

The GE 369-HI-R-M-0-0 Motor Management Relay is designed to provide comprehensive protection and control for medium-sized motors and their associated equipment. Its advanced features include waveform capture and event reporting, which enable real-time monitoring and diagnostics.
Built with true RMS phase current input conversion, the relay ensures accurate and reliable measurements under varying load conditions. The integrated metering capabilities further enhance operational efficiency by providing detailed performance data.
Equipped with twelve RTD inputs, this relay supports multiple temperature sensors, ensuring precise temperature monitoring across various points on the motor. This feature is crucial for maintaining optimal operating conditions and preventing overheating.
The relay’s compact design and versatile input range make it suitable for a wide range of industrial applications, from manufacturing facilities to power plants. Its robust construction ensures reliable performance even in harsh environments.
With its intuitive interface and comprehensive event logging, the GE 369-HI-R-M-0-0 simplifies motor management tasks, reducing maintenance time and improving overall system reliability.
