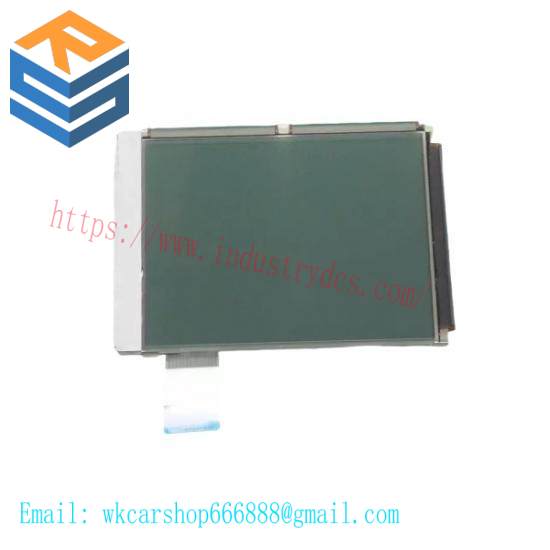

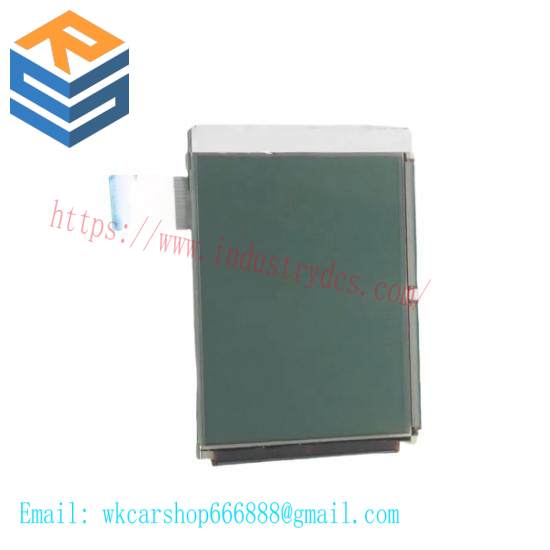

Emerging Electronic EW32F92FLW, 3.8-inch LCD Display Panel

Diagonal Size:3.8″

Display Type:LCD

Resolution:800×480 pixels

Brightness:500 cd/m²

Contrast Ratio:800:1

Operating Temperature Range:-20°C to +70°C

Storage Temperature Range:-30°C to +80°C

Operating Humidity Range:10% to 90% RH (non-condensing)

Mechanical Mounting:VESA 75mm x 75mm

Power Supply:DC 12V

Dimensions:96.6mm x 56.5mm x 14mm

Weight:68g

    The Emerging EW32F92FLW 3.8-inch LCD Display Panel is engineered to withstand harsh industrial conditions, making it an ideal choice for applications where reliability and durability are paramount.

    Featuring a high-resolution TFT LCD display with a wide viewing angle, this panel ensures clear visibility from various angles, enhancing usability in diverse operational settings.

    With an operating temperature range from -20°C to +70°C and a storage range from -40°C to +85°C, the EW32F92FLW is suitable for deployment in a wide variety of climates, from freezing cold to scorching heat.

    Equipped with advanced connectivity options including RS-232, USB, and HDMI ports, the panel seamlessly integrates with a broad spectrum of industrial control systems and devices, facilitating easy data transfer and system compatibility.

    Crafted from aluminum alloy, the enclosure not only adds to the panel’s robustness but also enhances its aesthetic appeal, making it suitable for both industrial and professional environments.
