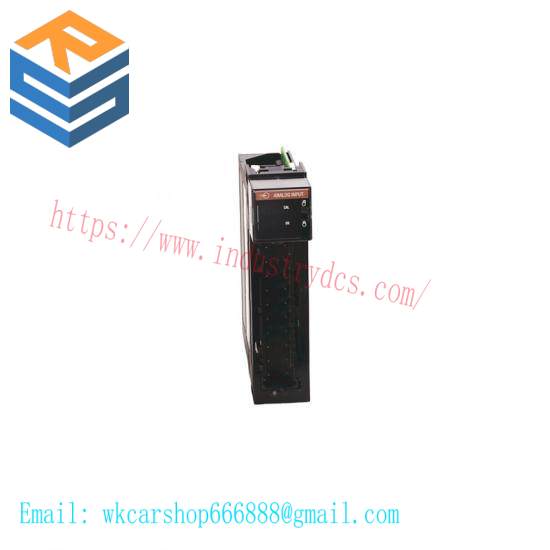

Allen-Bradley 1756-IF6I ControlLogix 6 Point Isolated Analog Input Module

Manufacturer:Allen-Bradley

Model:1756-IF6I

Type:AI Module

Isolation:Yes

Channels:6

Analog Input Range:4-20mA, 0-5V, 0-10V

Sampling Rate:5 samples per cycle

Data Format:Signed 16-bit

Communication Compatibility:ControlNet, DeviceNet, EtherNet/IP

Enclosure Type:IP20

Power Consumption:1.5W

Environmental Conditions:Operating temperature: 0°C to 55°C, Storage temperature: -40°C to 85°C

Vibration Resistance:Up to 5g

Shock Resistance:Up to 50g

Connection:Terminal block

Connector Type:DB9

    Engineered for precision, the 1756-IF6I AI Module is designed to meet the demands of complex industrial environments by providing isolated analog input signals for accurate measurements.

    Each channel supports a wide range of input signals, from 4-20mA to 0-10V, ensuring compatibility with various sensors and devices.

    Featuring a high sampling rate of 5 samples per cycle, the module ensures real-time data acquisition, crucial for responsive control systems.

    With support for multiple communication protocols like ControlNet, DeviceNet, and EtherNet/IP, this module facilitates seamless integration within diverse automation networks.

    Built to withstand harsh conditions, the module is rated for operation between 0°C to 55°C and can endure extreme environmental fluctuations without compromising performance.

    Robust and versatile, the 1756-IF6I is an ideal choice for applications requiring reliable and accurate data acquisition in industrial automation.
