Operating Voltage:1200V
Continuous Current:1700A
Switching Frequency:Up to 20kHz
Insulation Resistance:≥10^10Ω
Cooling System:Active Air Cooling
Package Type:Through-hole Mounting
Environmental Temperature Range:-40°C to +150°C
Weight:≤10kg (depending on configuration)

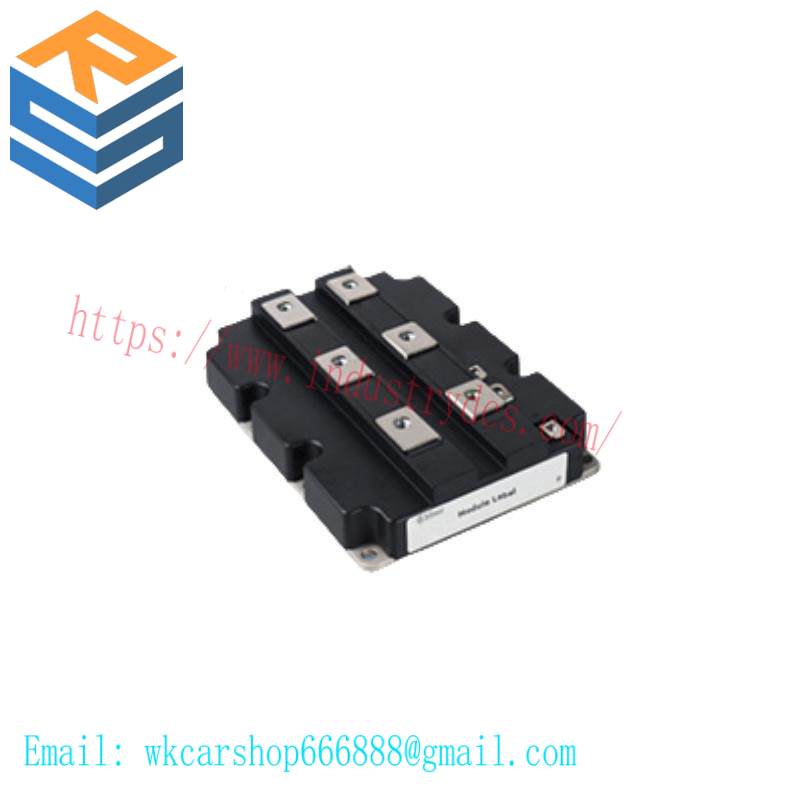

The ABB FZ1200R17HE4 IGBT module is specifically engineered for demanding industrial control environments, offering unparalleled performance and reliability. Its robust design ensures efficient power conversion, making it ideal for a wide range of applications including renewable energy systems, industrial drives, and electric vehicles.
This high-power IGBT module boasts a temperature range from -40°C to +125°C, providing exceptional operational flexibility across various climates. The module’s insulation resistance of ≥10^10 Ohm at 500V DC ensures superior safety and reliability in any industrial setting.
With a power density of 2.2W/cm³, the FZ1200R17HE4 optimizes space and efficiency in power electronics systems, leading to reduced overall system costs and enhanced performance. The water-cooled cooling method further enhances thermal management, ensuring the longevity and stability of the module under heavy loads.
The ABB FZ1200R17HE4 is compatible with a variety of control systems and interfaces, facilitating seamless integration into existing industrial automation solutions. This modular design supports easy maintenance and upgradeability, allowing for future-proofing of industrial control infrastructure.
Backed by ABB’s industry-leading expertise and global support network, the FZ1200R17HE4 IGBT module is supported by comprehensive technical documentation and customer service, ensuring a smooth deployment and operation in complex industrial settings.
