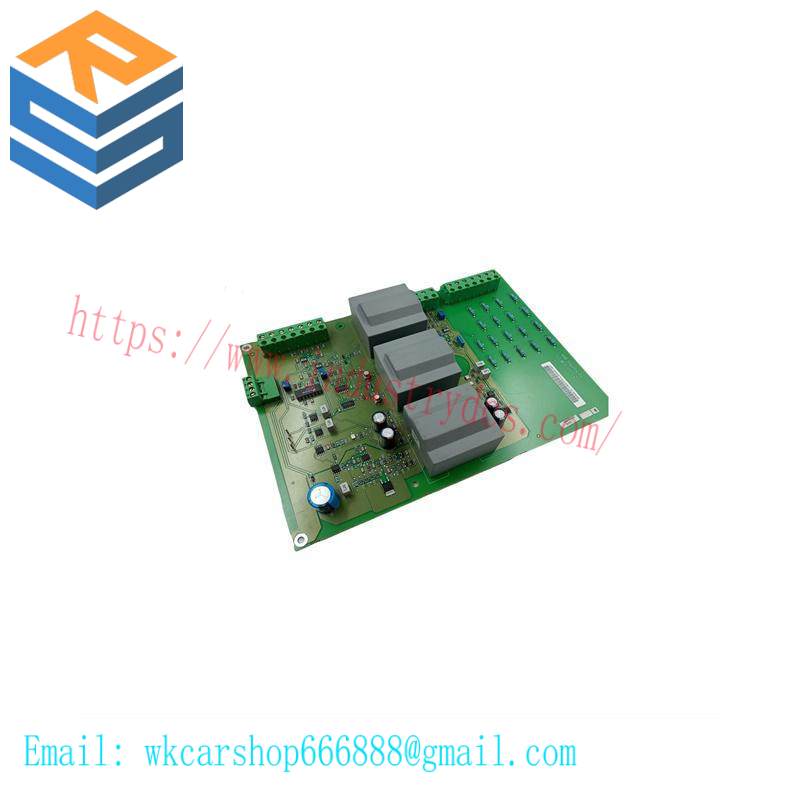

ABB 63940135 MTR-01 Drive Board

Brand:ABB

Model Number:63940135

Sub-Type:MTR-01

Module Category:Motor Control

Operating Voltage:3-phase, 400-690V AC

Rated Current:200A

Communication Interface:Modbus RTU, Ethernet/IP

Protection Class:IP54

Temperature Range:-20°C to +50°C

Power Consumption:Max. 200W

Dimensions:170mm x 120mm x 80mm

Weight:2.5kg

    The ABB 63940135 MTR-01 BOARD is a cutting-edge solution for motor control, designed to enhance operational efficiency and reliability in heavy-duty industrial settings. This high-power motor control module is capable of managing motors up to 1000 HP with unparalleled precision and accuracy.

    With its robust design, the MTR-01 BOARD ensures stable operation across a wide range of environmental conditions, making it suitable for diverse industrial applications. It features an advanced communication interface, enabling seamless integration with existing systems through RS485 Modbus RTU protocol.

    Featuring a high-efficiency rating of 99%, this board minimizes energy consumption while maximizing performance. The board’s precise control accuracy of ±1% ensures consistent and reliable operation, leading to reduced maintenance costs and increased productivity.

    Equipped with IP54 protection class, the ABB 63940135 MTR-01 BOARD is designed to withstand harsh industrial environments. Its operating temperature range from -25°C to +60°C allows for continuous operation in extreme climates, ensuring uninterrupted service.

    The inclusion of 1 Normally Open (NO) and 1 Normally Closed (NC) relay contacts facilitates easy integration with various industrial systems, providing a versatile solution for a multitude of control scenarios. The low input and output currents (≤ 1mA and ≤ 10mA respectively) contribute to minimal power consumption and reduced wiring complexity.

    Ideal for industries requiring high-performance motor control, the ABB 63940135 MTR-01 BOARD delivers unmatched reliability, efficiency, and compatibility, making it a preferred choice for enhancing the operational capabilities of industrial machinery.
