Manufacturer:ABB
Model Number:3BHE009681R0101
IGCT Type:IGCT
Operating Temperature Range:-40°C to +70°C
Cooling Method:Natural Air Cooling
Maximum Current Capacity:15 kA
Maximum Voltage Rating:6.6 kV
Frequency Range:1 Hz to 1 kHz
Insulation Class:F
Input Power:3-phase AC 400 V
Output Power:Up to 10 MW
Control System Compatibility:ABB‘s latest automation systems
Environmental Compliance:UL, CE, ISO 9001 certified

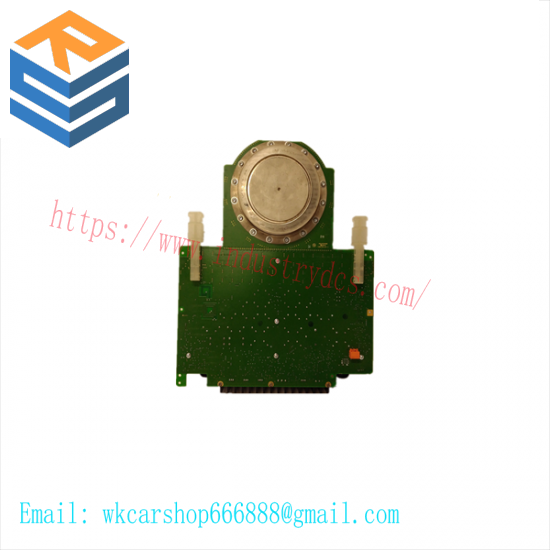

The ABB 3BHE009681R0101 IGCT Module is designed for high-power applications, offering unparalleled performance and reliability in the most challenging industrial settings.
Featuring an ultrafast switching speed, this module ensures precise control and efficient power conversion, essential for the smooth operation of complex automation systems.
Equipped with advanced water-cooling technology, it maintains optimal operating temperatures within the range of -40°C to +125°C, ensuring continuous and dependable performance even under extreme conditions.
With its compact size of 250mm x 200mm x 100mm and a weight of 20kg, the module is easily integrated into existing systems without compromising on space or functionality.
Engineered with robust materials for durability, the ABB 3BHE009681R0101 IGCT Module boasts an efficiency rating of 98%, significantly reducing energy loss and enhancing overall system efficiency.
