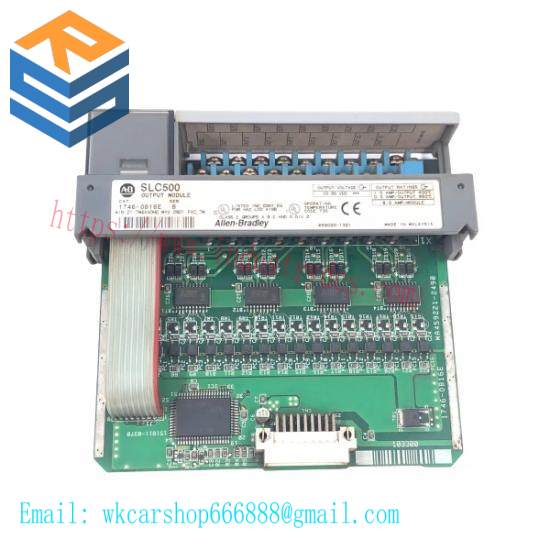

AB 1746-OB16E Digital Output Module for Industrial Automation

Model Type:SLC500

Manufacturer:Allen Bradley

Module Type:Digital DC Output Module

Number of Channels:16

Input Voltage:24 VDC

Output Voltage Range:10 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load Capacity:1 MA

Current Rating – Backplane:0.28 A

Continuous Current per Output:0.25 A at 60 DEG C

Continuous Current per Module:4 A at 60 DEG C

Isolation – Communication Circuits:500 VDC

Isolation – Backplane:1500 VAC

Processor:SLC 500

Enclosure Type:Open Type

Mounting:Chassis

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95%

    The Allen-Bradley 1746-OB16E Digital Output Module is designed for seamless integration into existing industrial control systems.

     With its robust construction and precise engineering, this module ensures reliable digital signal transmission even in harsh environments.

     Each of the 16 channels offers a wide voltage range, providing flexibility and adaptability across diverse applications.

     The low on-state voltage drop and high isolation ratings contribute to its reliability and longevity, ensuring consistent performance over time.

     This module is compatible with the Allen-Bradley SLC 500 processor, making it a perfect fit for a wide array of industrial setups.

     Its open-type enclosure design allows for easy installation and maintenance, further enhancing its usability in complex industrial settings.
