Brand:Allen-Bradley
Model:1746-IV16
Input Channels:16
Input Type:DC
Voltage Range:10 – 30 VDC
Off-State Voltage:3 VDC
Nominal Current:8 mA at 24 VDC
Off-State Current:1 mA
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Shock Resistance:30 G

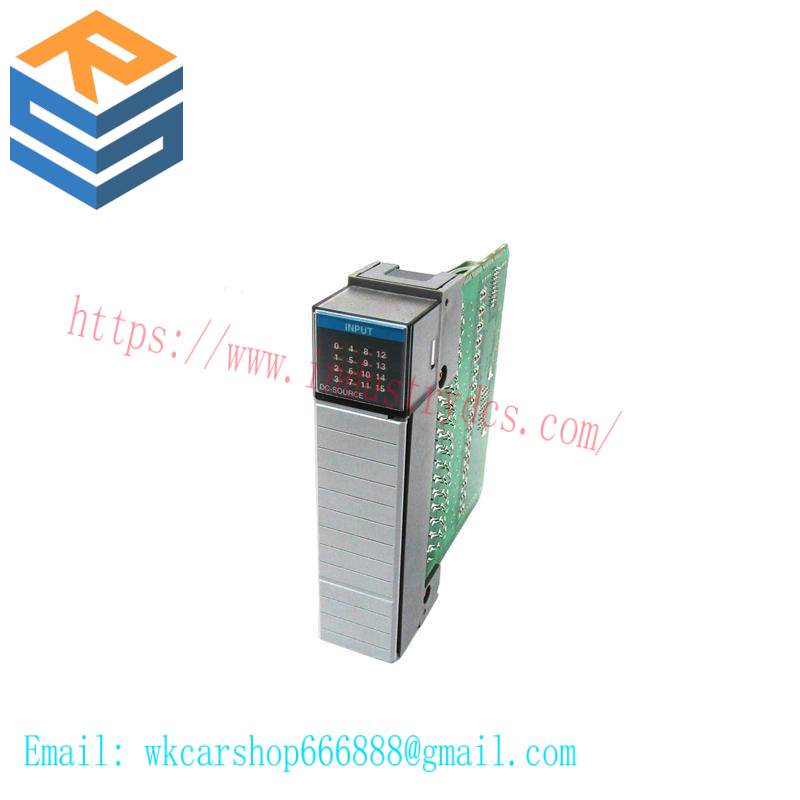

The Allen-Bradley 1746-IV16 DC Input Module is a high-performance digital input module designed for use in industrial automation systems. It supports 16 input channels, providing reliable signal acquisition from field devices. This module operates within a wide voltage range of 10 – 30 VDC and is rated for an input current of 8 mA at 24 VDC. Its robust design ensures stable performance even under challenging environmental conditions, making it ideal for industrial applications. With a temperature rating of 0 – 60 °C and the ability to withstand shocks up to 30 G, this module is built to last in demanding environments. The module also features isolation ratings of 500 VDC for communication circuits and 1500 VAC for the backplane, ensuring safe and reliable operation. Designed for seamless integration with Allen-Bradley control systems, the 1746-IV16 module enhances system efficiency and reliability.
